U-Channel-and-Header-Systems

Click on list item to open image and description.

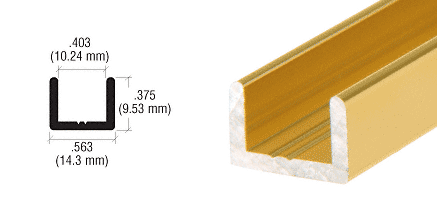

3/8" Regular U Channel

Regular U-Channel has a low 3/8" profile allowing for maximum glass exposure. It is most commonly used for securing fixed panels of glass to the wall, ceiling or floor. Widths suitable for 3/8" thick glass are available, and are individually wrapped to protect the finish. Wet Glazed with Clear Silicone to Secure Glass. Available in Popular 98" Lengths. End Caps Offered to Conceal Ends of Channel. Available in Chrome, Brushed Nickel and Brite Gold Finishes.

  • 3/8" Regular U Channel
    3/8" Regular U Channel

    Regular U-Channel has a low 3/8" profile allowing for maximum glass exposure. It is most commonly used for securing fixed panels of glass to the wall, ceiling or floor. Widths suitable for 3/8" thick glass are available, and are individually wrapped to protect the finish. Wet Glazed with Clear Silicone to Secure Glass. Available in Popular 98" Lengths. End Caps Offered to Conceal Ends of Channel. Available in Chrome, Brushed Nickel and Brite Gold Finishes.

  • 3/8" Deep U Channel
    3/8' Deep U Channel

    Deep U-Channel is for securing fixed panels of glass to the wall, ceiling or floor. Widths suitable for 3/8" thick glass are available, and are individually wrapped to protect the finish. This 3/4" high profile Deep U-Channel can be used as the top channel in installations where the glass must be inserted into the top channel, then lowered into the Regular U-Channel. Wet Glazed with Clear Silicone to Secure Glass. All Available in Popular 98" Lengths. Some Available in Economical 144" Stock Lengths. End Caps Offered to Conceal Ends of Channel. Available in Up to Seventeen Finishes.

  • 1/2" Regular U Channel
    1/2' Regular U Channel

    Regular U-Channel has a low 3/8" profile allowing for maximum glass exposure. It is most commonly used for securing fixed panels of glass to the wall, ceiling or floor. Widths suitable for 1/2" thick glass are available, and are individually wrapped to protect the finish. Wet Glazed with Clear Silicone to Secure Glass. Available in Popular 98" Lengths. End Caps Offered to Conceal Ends of Channel. Available in Chrome, Brushed Nickel and Brite Gold Finishes.

  • 1/2" Deep U Channel
    1/2' Deep U Channel

    Deep U-Channel is for securing fixed panels of glass to the wall, ceiling or floor. Widths suitable for 1/2" thick glass are available, and are individually wrapped to protect the finish. This 3/4" high profile Deep U-Channel can be used as the top channel in installations where the glass must be inserted into the top channel, then lowered into the Regular U-Channel. Wet Glazed with Clear Silicone to Secure Glass. All Available in Popular 98" Lengths. Some Available in Economical 144" Stock Lengths. End Caps Offered to Conceal Ends of Channel. Available in Up to Seventeen Finishes.

  • Fixed Panel Wall To Glass Support Bar
    Fixed Panel Wall To Glass Support Bar

    These Fixed Panel Support Bars stabilize fixed panels of glass in enclosures that do not go all the way up to the ceiling. The Wall-to-Glass Bar has a bell-shaped clamping device on the wall side, and a solid brass end cap with a swiveling U-shaped receptacle to secure the fixed glass panel. Nylon-tipped set screws secure the glass and prevent glass-to-metal contact. Bars are available in two lengths, and in sizes to secure 1/4" to 1/2" thick glass. Finishes are available to match most of our hinges, knobs, and pull handles. No holes or cut-outs are required in the glass. May be Used as an Alternative to Header Kits to Secure Fixed Panels and Provide Safety. Fits 3/8" - 1/2" glass for 39" length.

  • Stabilizer Bar With Slim Line Wall Mount Fitting
    Stabilizer Bar With Slim Line Wall Mount Fitting

    These Fixed Panel Support Bars stabilize fixed panels of glass in enclosures that do not go all the way up to the ceiling. The Wall-to-Glass Bar has either a bell-shaped clamping device or a Slim Line Wall Fitting on the wall side, and a solid brass end cap with a swiveling U-shaped receptacle to secure the fixed glass panel. Nylon-tipped set screws secure the glass and prevent glass-to-metal contact. Bars are available in two lengths, and in sizes to secure 1/4" to 1/2" thick glass. Finishes are available to match most of our hinges, knobs, and pull handles. No holes or cut-outs are required in the glass. May be Used as an Alternative to Header Kits to Secure Fixed Panels and Provide Safety. Fits 3/8" or 1/2" glass for 39" length.

  • Fixed Panel Glass To Glass Bar
    Fixed Panel Glass To Glass Bar

    These Fixed Panel Support Bars stabilize fixed panels of glass in enclosures that do not go all the way up to the ceiling. The Glass-to-Glass Bar has solid brass end caps with swiveling U-shaped receptacles on both ends to secure each fixed panel. Nylon-tipped set screws secure the glass and prevent glass-to-metal contact. Bars are available in two lengths, and in sizes to secure 1/4" to 5/16" thick glass. Finishes are available to match most of our hinges, knobs, and pull handles. No holes or cut-outs are required in the glass. May be Used as an Alternative to Header Kits to Secure Fixed Panels and Provide Safety. Prices for 3/8 - 1/2" glass 39" long. Chrome, Brushed Nickel, Brass.

  • Ceiling Mount 33" Vertical Post System
    Ceiling Mount 33' Vertical Post System

    33" Frameless Vertical Post System. Used to stabilize fixed panels of glass not reaching the ceiling, and provide an excellent alternative to customers not wanting to use the more traditional horizontal Header Systems that run across the entire width of the enclosure. Four Popular Stock Finishes For 5/16", 3/8", and 1/2" (8, 10, and 12 mm) Glass. Glass Fabrication Required for Tube Adaptors/End Caps [3/4" (19 mm) Holes]. Custom Kits Available in Various Finishes, Post Configurations, and with Dome or Ball Style Glue-In End Caps (Two-Point System Only).

  • Floor To Ceiling 92" Vertical Post System
    Floor To Ceiling 92' Vertical Post System

    92" Frameless Vertical Post System. Used to stabilize fixed panels of glass not going to the ceiling, and provide an excellent alternative to customers not wanting to use the more traditional horizontal header systems that run across the entire width of the enclosure. Four Popular Stock Finishes: Polished Stainless, Brushed Stainless, Brass, Oil Rubbed Bronze. Glass Thickness supported 5/16", 3/8", and 1/2" Glass. Glass Fabrication Required for Tube Adaptors/End Caps [3/4" Holes].

  • Inline Panel With Vertical Support Bar
    Inline Panel With Vertical Support Bar

    These Fixed Panel Support Bars stabilize fixed panels of glass in enclosures that do not go all the way up to the ceiling. The Wall-to-Glass Bar has a bell-shaped clamping device on the wall side, and a solid brass end cap with a swiveling U-shaped receptacle to secure the fixed glass panel. Nylon-tipped set screws secure the glass and prevent glass-to-metal contact. Bars are available in two lengths, and in sizes to secure 1/4" to 1/2" thick glass. Finishes are available to match most of our hinges, knobs, and pull handles. No holes or cut-outs are required in the glass. May be Used as an Alternative to Header Kits to Secure Fixed Panels and Provide Safety.

  • Side Support Bar
    Side Support Bar

    These Fixed Panel Support Bars stabilize fixed panels of glass in enclosures that do not go all the way up to the ceiling. The Wall-to-Glass Bar has a bell-shaped clamping device on the wall side, and a solid brass end cap with a swiveling U-shaped receptacle to secure the fixed glass panel. Nylon-tipped set screws secure the glass and prevent glass-to-metal contact. Bars are available in two lengths, and in sizes to secure 1/4" to 1/2" thick glass. Finishes are available to match most of our hinges, knobs, and pull handles. No holes or cut-outs are required in the glass. May be Used as an Alternative to Header Kits to Secure Fixed Panels and Provide Safety.

  • Glass To Glass Support Header Bar
    Glass To Glass Support Header Bar

    These Fixed Panel Support Bars stabilize fixed panels of glass in enclosures that do not go all the way up to the ceiling. The Glass-to-Glass Bar has solid brass end caps with swiveling U-shaped receptacles on both ends to secure each fixed panel. Nylon-tipped set screws secure the glass and prevent glass-to-metal contact. Bars are available in two lengths, and in sizes to secure 1/4" to 1/2" thick glass. Finishes are available to match most of our hinges, knobs, and pull handles. No holes or cut-outs are required in the glass. May be Used as an Alternative to Header Kits to Secure Fixed Panels and Provide Safety.

  • Through Glass Mounted Support Bar
    Through Glass Mounted Support Bar

    The Through-Glass Mounted Support Bar creates a means of support that strengthens an enclosure's structural integrity of shower enclosure. Choice of Wall (GTW)or Glass-to-Glass (GTG) Mount. Stocked in Numerous Finishes, with Custom Finishes Available. 39" Bar Length, 42-5/8" Overall Length with fittings.

  • Thru Glass To Wall Rod
    Thru Glass To Wall Rod

    Ideal for Use as a Shower Curtain Rod anchoring glass panel 72" lengths in Polished and Brushed Stainless Steel. Custom Lengths and Painted Finishes Available. The 3/4" (19 mm) diameter tubing is prepped on one end with a 3/4" diameter end cap. 1/2" diameter hole is required in the glass. Requires additional fitting for wall attachment.

  • Shower Door Header Kit
    Shower Door Header Kit

    The Deluxe Header Kit will provide additional support and a level of safety while securing glass panels not reaching the ceiling. Deluxe Header Kits are designed to allow installers to do in-house fabrication using a selection of component parts. Sold in 66", 98" or 144" lengths, each. Header Extrusion has a narrow 1-1/4" face to minimize the visible sight line. 90 Degree, 135 Degree or Adjustable Corners are sold separately. Also available is a special Adapter Block for use on pivot hinge installations. Brass Wall Brackets are included in each kit.

  • Flat or Square Header Rail Kit
    Flat or Square Header Rail Kit

    The Deluxe Header Kit will provide additional support and a level of safety while securing glass panels not reaching the ceiling. Sold in 98" lengths only. Header Extrusion has a narrow 1-1/4" face to minimize the visible sight line. 90 Degree, 135 Degree or Adjustable Corners are sold separately. Also available is a special Adapter Block for use on pivot hinge installations. Brass Wall Brackets are included in each kit. A Blank Mounting Bracket is offered separately for installations where the Header does not meet the wall at 90 Degrees, and the standard Wall Mounting Brackets cannot be used.

  • EZ-Adjust Shower Door Header Kit
    EZ-Adjust Shower Door Header Kit

    The NEW EZ-Adjust Shower Door Header Kit provides a safe and beautiful frameless shower installation by securing enclosures that do not reach the ceiling. Acting as a "crown" over the top of the glass, the EZ-Adjust Shower Door Header Kit is bracketed to each wall. The EZ-Adjust System allows adjustability after installation in that the hinge (PPH06 and SRPPH06 only) can be moved left and right as desired. No Hole Drilling Required Through Header for Adaptor, if Using Prima Hinge Model PPH06 or Senior Prima Hinge Model SRPPH06.

  • Square Support Bar
    Square Support Bar

    Our new Square Support Bar complements many square corner style hinges. The Bar stabilizes fixed panels of glass in enclosures that do not go to the ceiling. After ordering the Bar itself, choose from a number of various Fittings to complete the desired application. The Fittings come with nylon-tipped set screws that secure the glass and prevent metal-to-metal contact. Finishes are available to match many popular decors. No holes or cut-outs are required in the glass.
